Manual Device Activation

Manual device creation can be used with any device supported by Blynk no matter which type of connection they use.

Such workflow is mostly used during prototyping or for devices that don't require end-user activation.

Follow the steps 1-4 below:

Step 1: Preparing your sketch

Perparing your sketch

Install the latest version of Blynk Library to the IDE you use
After that, you should see Blynk folder under the File > Examples
Select the example for the hardware you use. We will use the one for ESP32

#define BLYNK_PRINT Serial
#define BLYNK_TEMPLATE_ID      "TMPL••••••••"
#define BLYNK_TEMPLATE_NAME    "Test"
#define BLYNK_AUTH_TOKEN       "••••••••••••••••••••••••"

#include <BlynkSimpleEsp32.h>

void setup()
{
  Serial.begin(115200);
  Blynk.begin(BLYNK_AUTH_TOKEN, "wifi-ssid", "wifi-pass");
}

void loop()
{
  Blynk.run();
}

Pay attention to these 4 lines: you would need to fill them.

#define BLYNK_TEMPLATE_ID      "TMPL••••••••"
#define BLYNK_TEMPLATE_NAME    "Test"
#define BLYNK_AUTH_TOKEN       "••••••••••••••••••••••••"
...
Blynk.begin(BLYNK_AUTH_TOKEN, "wifi-ssid", "wifi-pass");

Step 2: Getting Template ID

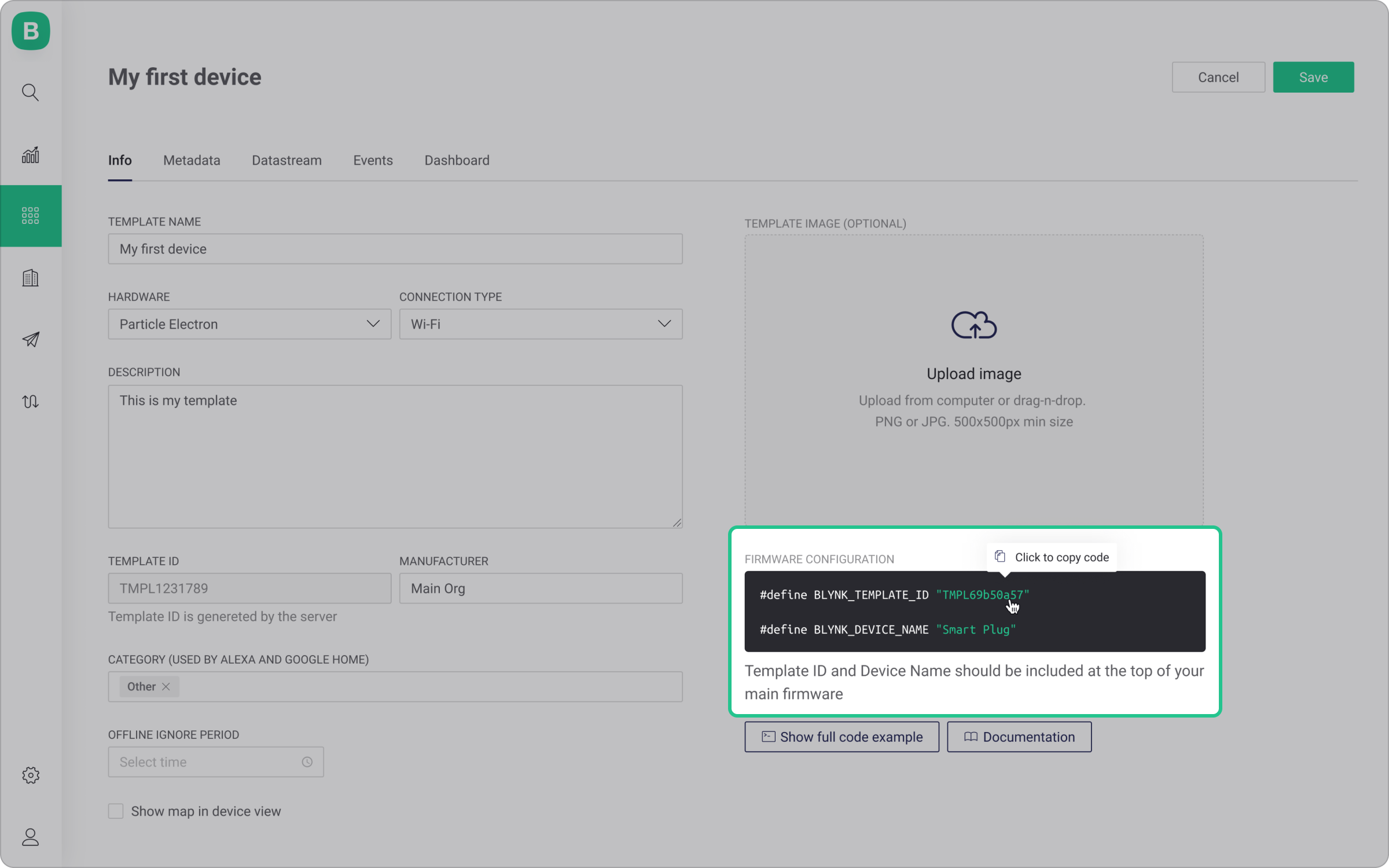

Template ID and Device Name

Log in to your Blynk.Console developer account, go to Developer Zone
Create New Template or open an existing one
Copy the contents of this section and paste them to your sketch

Step 3: Getting Auth Token

Getting Auth Token

When the Template is ready, go to Devices -> Create New Device

Choose a Template and give your new device a name

After the device was created, you will get the notification with TemplateID and AuthToken. Also, this info is always available in Devices -> Device -> Developer Tools

Now you have all the information you need to update your sketch:

Step 4: Updating sketch with Template ID and AuthToken

Updating sketch with Template ID and AuthToken

Add TEMPLATE_ID and AuthToken to your sketch:

#define BLYNK_PRINT Serial
#define BLYNK_TEMPLATE_ID      "TMPL••••••••"
#define BLYNK_TEMPLATE_NAME    "My First Device"
#define BLYNK_AUTH_TOKEN       "••••••••••••••••••••••••"

#include <BlynkSimpleEsp32.h>

void setup()
{
  Serial.begin(115200);
  Blynk.begin(BLYNK_AUTH_TOKEN, "your-wifi-ssid", "your-wifi-pass");
}

void loop()
{
  Blynk.run();
}

Upload the sketch to your device and open Serial Monitor. Wait until you see something like this:

Blynk v.X.X.X
Your IP is 192.168.0.11
Connecting to...
Ready (ping: 40ms)

Congrats! Your device should be now online!
